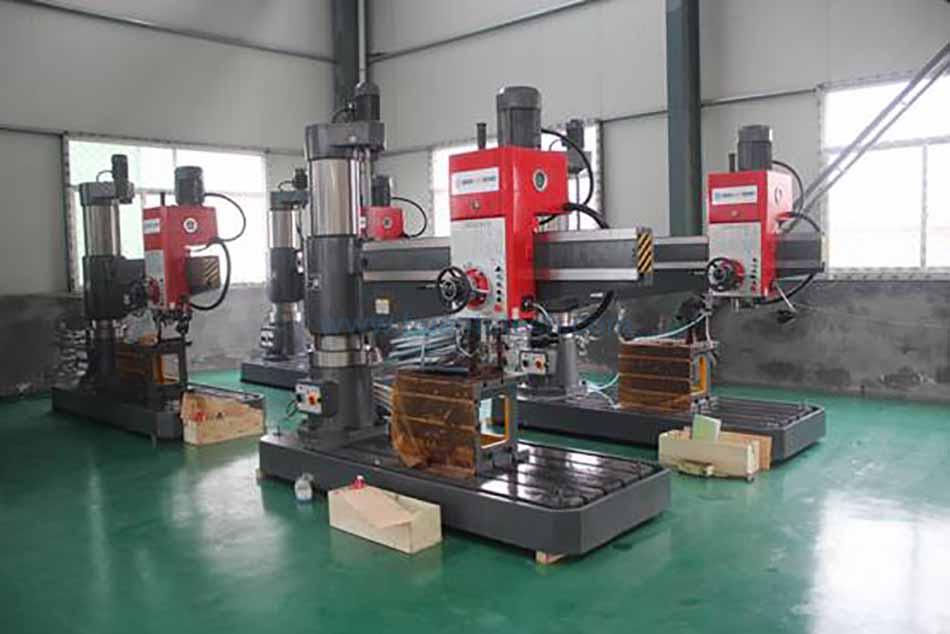

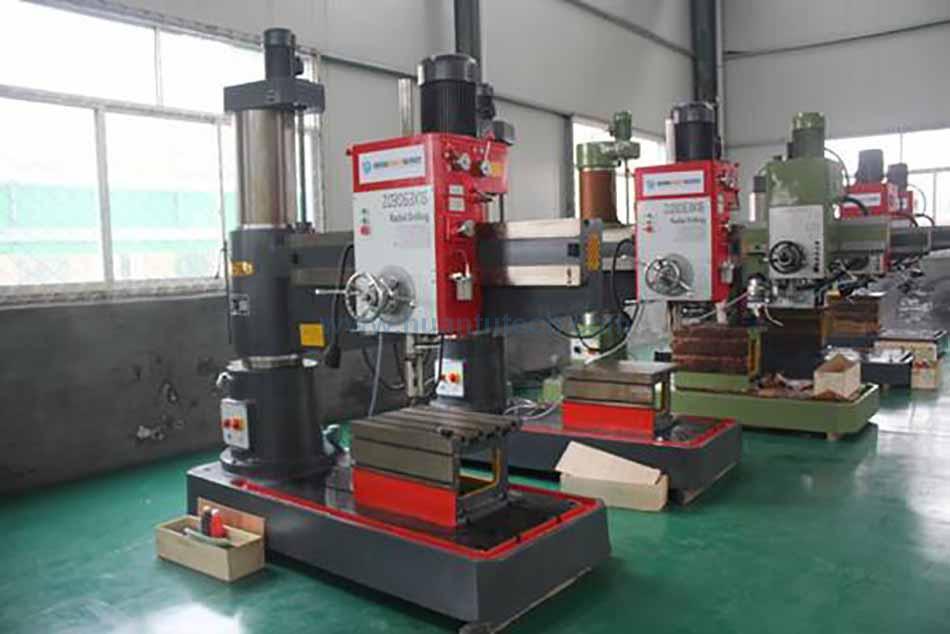

Feature:
The main key pieces of high strength cast iron and special steel.
By the specialized equipment to ensure continuous processing,sophisticated infrastructure components.
Using the hydraulic preselected speed change mechanism,can save auxiliary time.
Spindle positive,parking ( brake ),transmission,free action,with a handle control,operate more conveniently and quickly.
The spindle box,rocker arm,inner and outer column driven by hydraulic pressure rhombic block clamping mechanism,reliable clamping.
16 levels of spindle speed and feed optional economic and efficient cutting
Rocker guide rail,the outer column surface,spindle,spindle sleeve and the inner and outer column rotary raceway are conducted quenching treatment,can maintain the stability of machine tool accuracy,prolongs the service life.
Have good safety protection device and the outer column protection.
The structure design and in the manufacturing process,but also adopted a series of effective measures,so that the precision of the machine tool durability and the service life of the whole machine are enlarging.
The new coating technology and the continuous improvement of appearance display style of the times.
Main Specification:
|
Specification
|
Units
|
ZQ304×10
|
|
Max. drilling diameter
|
mm
|
Cast iron40\Steel32
|
|
Distance spindle nose and work surface of base
|
mm
|
260-1050
|
|
Distance between spindle axis and column
|
mm
|
360-1300
|
|
Spindle travel
|
mm
|
200
|
|
Spindle taper
|
Morse
|
4
|
|
Range of spindle speeds
|
r/min
|
75-1200
|
|
Number of spindle speeds
|
step
|
6
|
|
Range of spindle feeds
|
mm/r
|
0.10-0.56
|
|
Number of spindle feeds
|
step
|
3
|
|
Rocker rotary angle
|
°
|
360
|
|
Motor power
|
kw
|
2.2
|
|
Movement motor power
|
kw
|
0.75
|
|
Machine weight
|
kg
|
1600
|
|
Overall dimension
|
mm
|
150×705×2200
|
After Sales Service
Our guarantee time is Two years from B/L date. If any component is damaged during guarantee time,we can send the component to the customer by DHL,TNT freely.
Our factory can send our engineer to the customer’s factory install,commission and training freely. The customer provides the double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
Our factory provide the service for the customer forevers,if the customer need operation help,can contact us by MSN,Skype,Email and Telephone at any time,we provide 24 hours on-line service.

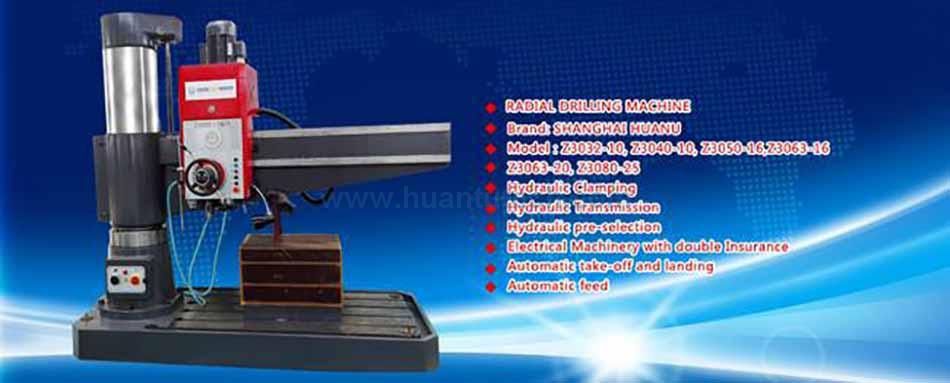

RADIAL DRILLING MACHINE
INT’L Brand: SHANGHAI HUANU
Model : Z3032-10,Z3040-10,Z3050-16，Z3063-16，
Z3063-20,Z3080-25
Hydraulic Clamping
Hydraulic Transmission
Hydraulic pre-selection
Electrical Machinery with double Insurance
Automatic take-off and landing
Automatic feed
