Feature:
The main key pieces of high strength cast iron and special steel.
By the specialized equipment to ensure continuous processing,sophisticated infrastructure components.
Using the hydraulic preselected speed change mechanism,can save auxiliary time.
Spindle positive,parking ( brake ),transmission,free action,with a handle control,operate more conveniently and quickly.
The spindle box,rocker arm,inner and outer column driven by hydraulic pressure rhombic block clamping mechanism,reliable clamping.
16 levels of spindle speed and feed optional economic and efficient cutting
Rocker guide rail,the outer column surface,spindle,spindle sleeve and the inner and outer column rotary raceway are conducted quenching treatment,can maintain the stability of machine tool accuracy,prolongs the service life.
Have good safety protection device and the outer column protection.
The structure design and in the manufacturing process,but also adopted a series of effective measures,so that the precision of the machine tool durability and the service life of the whole machine are enlarging.
The new coating technology and the continuous improvement of appearance display style of the times.
Main Specification:
|
Technical parameters
|
Units
|
ZQ3063×20
|
|
Max Drilling Diameter
|
mm
|
63
|
|
Spindle nose to table distance
|
mm
|
280-1250
|
|
Spindle center to pillar bus distance
|
mm
|
360-2000
|
|
Spindle travel
|
mm
|
315
|
|
Spindle taper
|
morse
|
5
|
|
Spindle speed range
|
r/min
|
28-128
|
|
Spindle speeds series
|
step
|
12
|
|
Spindle feed range
|
Mm/r
|
0.04-3.2
|
|
Spindle feed series
|
step
|
12
|
|
Radial rotation Angle
|
Degree
|
360°
|
|
Main motor power
|
kw
|
4
|
|
Lifting Motor Power
|
kw
|
1.5
|
|
Machine weight
|
kg
|
3500
|
|
Machine overall size
|
mm
|
2350×920×2600
|

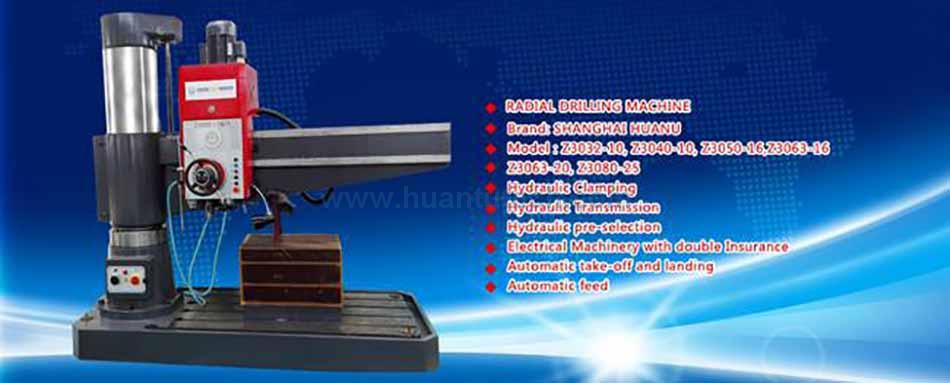

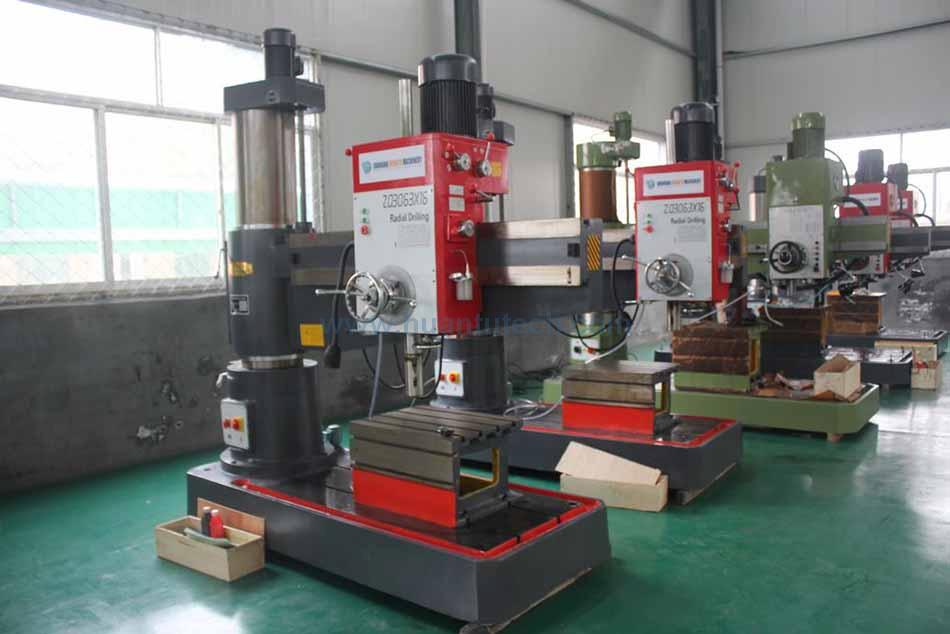

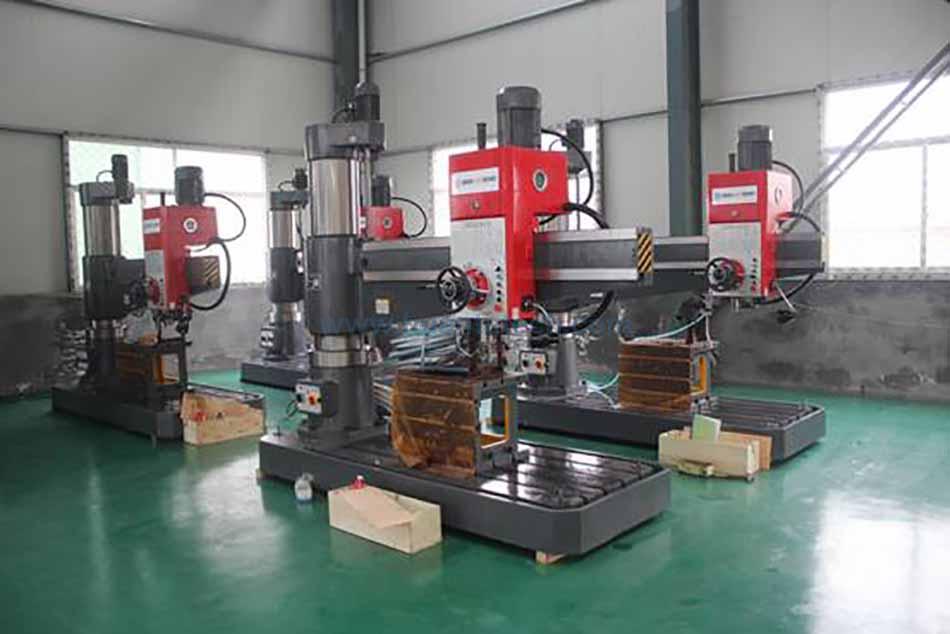

RADIAL DRILLING MACHINE
INT’L Brand: SHANGHAI HUANU
Model : Z3032-10,Z3040-10,Z3050-16，Z3063-16，
Z3063-20,Z3080-25
Hydraulic Clamping
Hydraulic Transmission
Hydraulic pre-selection
Electrical Machinery with double Insurance
Automatic take-off and landing
Automatic feed
