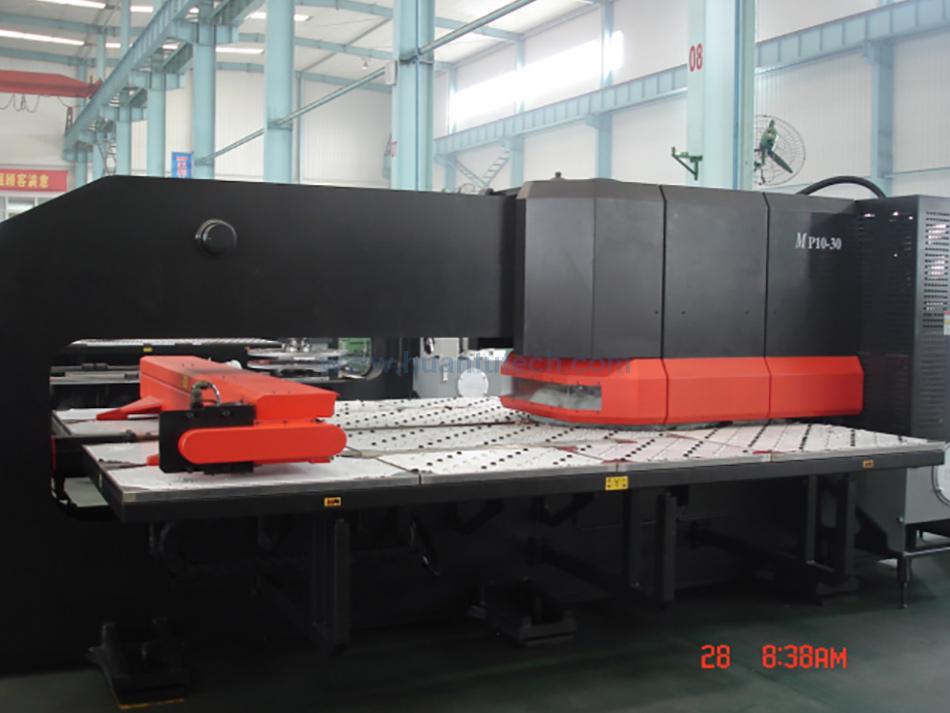

Brief Introduction
1.Specifications
1. Nominal force  KN 300
2. Work piece size mm 1250×2500
3．Max work piece weight Kg 156
4. Max work piece thickness mm 6.35
5. Max punch diameter mm Ф88.9
6. Number of stations 32
7．Working accuracy mm ±0.1
8．Max. hit speedHPM 600
9．Work piece traveling speed  m/min 106
10．Turret speed r/min 30
11．Frame construction Closed-type
12．Throat depth mm 1275
13．Number of control axis  4 axes (X,Y,T,C)
14．Max rotary station punching diameter  mm Ф50.8
15．Repeatability mm 0.02
16．Lubrication device Available
17．Number of clamp 2
18．Clamp type Pneumatic type
19．Heat treatment of the frame
20．Tool type Long guide sleeve type(AMADA)
21．Turret construction Thin turret long insert type
22．Power capacity kW 25
23．Air pressureMpa 0.55
24．Machine dimension (L*W*H) mm 5400*2700*2200

2.Machine Feature
1.Advanced and reliable hydraulic drive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver,blanking,etc. The punch is equipped with auto hydraulic overload protection device,and guarantees consistent pressing force for quality products.
2.The punch is of FANUC 0iP control system.
3.Rotary tooling stations are of worm wheel structure with max. punching diameter of Ф50.8.
4.Dual turret is of long insert structure ensuring coaxiality of the punch and die,which gives long life to the tool and turret.
5.Imported pneumatic and hydraulic components guarantee reliability of the machine.
6.Imported ballscrews with long travel,and linear guideways ensure transmission precision.
7.The worktable with hard brush and steel ball reduces noise and shock of the machine,and protects surface of the work piece.
8.The machine is straight-side frame,which is annealed for eliminating inner stress.
9.The clamps with auto protection function,in the protective zone,only excise movement without punching action for continuous operation.
10．Central lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life.
12．Tool station layout consists of A、B、C、D,which is convenient for the customer and save the tool cost.
13．Common requirement is for site foundation preparation and machine installation is simple.

3．Main Imported Components List

4.FAUNC Control System
1.System configuration
a)Step punch function,graphic function,applicable program and data of CNC memory and definition 0.1μm.
b)Simple international G code for operation.
c)Standard RS232 interface with the PC.
d)Advanced AC servo system and servo motor modular design for easy maintenance.
e)Outstanding MMC dialogue function between the machine and operator.
f)Color TFT 10.4″display.
g)Chinese and English versions are available.
h)Programming on line and background programming
i)Distance diagnosis function.
2.System functions
a)Linear axis: X-axis,Y-axis; Rotary axis: T-axis,C-axis.Self-diagnosis function.
b)International G code programming.
c)Soft limit protection function and repositioning function.
d)Pitch compensation function and reverse gap compensation function.
e)Different operation modes such as Auto,Manual,Semi-auto,etc.
f)Clamp protection function.
g)Parameter programming function and subroutine recall function
h)Quick positioning function
i)Various M function and other supporting function.
j)Absolute,incremental programming; conditional and non-conditional skip function.
k)Warning indication for overload,overflowing,over-travel and various mechanical and electronic faults.
l)The control system special for CNC turret punch

5. Supply Range
1.One set of CNC turret punch (include 24 pair of Chinese standard tools).
2.Accessories with the machine:

3.Tools for machine installation and maintenance

4.Spare parts with the machine:

5.Documents with the machine:

6.32- Station Layout

Note: Above-mentioned 32- station standard tools are of square,rectangle,round and obround shapes. Additional payment is for special tools.
7.Environment Conditions for the Machine
1.Power: 380V ± 10%,50HZ
2.Temperature: 5 - 40℃ (for machine operation)
3.Relative Humidity: 20 – 80%RH
4.Keep this machine away from a strong shock source and electromagnetic source.
5.Free from harmful and corrosive gas and dust.

Guarantee Installation and Training Service:
1.Our guarantee time is 5 years from B/L date.  If any component is damaged during guarantee time,we can send the component to the customer by DHL,TNT freely.
2.Our factory can send our engineer to the customer’s factory install,commission and training freely. The customer provide the double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever,if the customer need operation help,can contact us by Skype,Email ,Telephone,Whatsapp and Wechat at any time,we provide 24 hours on-line service.
