1. Perfectly complete pre-bending,rolled-up,roll calibrate.
2. Working principle: two down rollers as main driving roller,or all three rollers as main driving roller; with upper roller fixed and two down rollers do up-and-down movement around one fixed center.
3. Well hydraulic control,displacement liquid-crystal display with accuracy ±0.1mm.
4. The two touch steel stick can permit the good finishing quality of asymmetric plate section bending.
5. Advanced and compact structure with full function.
6. Pre-bending function.
|
No.
|
Technical Data
|
W24S-180
|
|
1
|
Max. Bending resistant modulus
|
180CM3
|
|
2
|
Yield limit
|
245Mpa
|
|
3
|
Mould Diameter
|
Standard
|
|
4
|
Down roller speed
|
180-200mm/ min
|
|
5
|
Min. Rolling diameter under full load condition
|
Ф 1800 mm
|
|
6
|
Up roller diameter
|
Ф 320 mm
|
|
7
|
Down roller diameter
|
Ф 280 mm
|
|
8
|
Bending speed
|
4m/min
|
|
9
|
Hydraulic pressure
|
19.5Mpa
|
|
10
|
Motor (Shanghai Lichao)
|
35KW
|
|
11
|
Hydraulic system
|
Rexroth,German
|
|
12
|
Electrical elements
|
Siemens,German
|
|
13
|
PLC
|
Omron,Japan
|
|
14
|
Weight
|
21500kg
|
|
15
|
Dimension (LXWXH)
|
3200X2500X2000mm
|

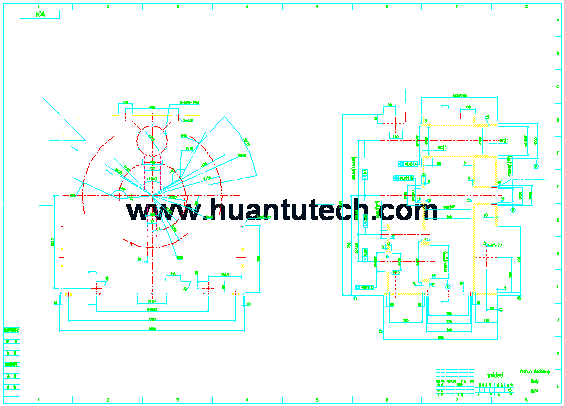

This is drawing design of W24S hydraulic with pre-bending function.
|
Technical Parameter
|
W24S
|
|
W24S-180
|
|
the modulus of elasticity in static bending
|
180
|
|
rolling speed（m/min）
|
4
|
|
yield limit（Mpa）
|
△S=250
|
 angle steel in turn
|
max. section(mm)
|
150×16
|
|
min. u-bend dia.(mm)
|
2600
|
|
min. section(mm)
|
50×6
|
|
min. u-bend dia.(mm)
|
1200
|
 angle steel outturn
|
max. section(mm)
|
160×16
|
|
min. u-bend dia.(mm)
|
2000
|
|
min. section(mm)
|
50×6
|
|
min. u-bend dia.(mm)
|
1000
|
 channel steel in turn
|
channel steel model
|
32
|
|
min. u-bend dia.(mm)
|
1500
|
 channel steel outturn
|
channel steel model
|
32
|
|
min. u-bend dia.(mm)
|
1800
|
 flat steel bend horizontally
|
max. section(mm)
|
300×50
|
|
min. u-bend dia.(mm)
|
1500
|
 flat steel bend vertically
|
max. section(mm)
|
180×30
|
|
min. u-bend dia.(mm)
|
2000
|
 steel pipe
|
max. section(mm)
|
168×8
|
|
min. u-bend dia.(mm)
|
2000
|
 steel rob
|
max. section(mm)
|
110
|
|
min. u-bend dia.(mm)
|
1300
|
 square tube
|
max. section(mm)
|
140×10
|
|
min. u-bend dia.(mm)
|
3000
|
Guarantee Installation and Training Service:
1.Our guarantee time is 5 years from B/L date. If any component is damaged during guarantee time,we can send the component to the customer by DHL,TNT freely.
2.Our factory can send our engineer to the customer’s factory install,commission and training freely. The customer provide the double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever,if the customer need operation help,can contact us by Skype,Email ,Telephone,Whatsapp and Wechat at any time,we provide 24 hours on-line service.
