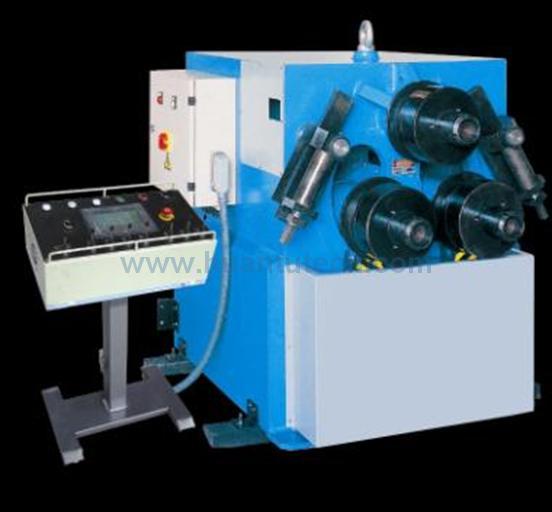

  • product name: W24S-6 Profile bending machine
  • Product number:5

    General information
    It is W24S-6 model,with hydraulic device. It can be used to roll "U" "O" and spiral  shapes. We set advanced PLC,movable operation table,and Siemens Electrical (380V/50HZ/3PH). With 3 sets pipe bending models.

    Main technical data

    No.

    Technical Data

    W24S-6

    1

    Max. Bending resistant modulus

    6CM3

    2

    Yield limit

    245Mpa

    3

    Mold Diameter

    different specification Profile matches with different specification mold

    4

    Down roller speed

    180-200mm/ min

    5

    Min. Rolling diameter under full load condition

    Depends on the profile material

    6

    Up roller diameter

    Ф   150 mm

    7

    Down roller diameter

    Ф   120 mm

    8

    Bending speed

    5m/min

    9

    Electrical elements

    Siemens,Germen

    10

    Hydraulic pressure

    18Mpa

    11

    Hydraulic system

    Yuken,Japan

    12

    Motor

    7.5KW (Shanghai Lichao)

    13

    Weight

    2000KGS

    14

    Dimension (L*W*H)

    1500X1500X1200mm


    Technical Parameters

    Technical Parameter



    W24S

    W24S-6

    the modulus of elasticity in static bending



      6

    rolling speed(m/min)



    6

    yield limit(mpa)



    △S=250

    angle steel inturn



    max. section(mm)

    40×5

    min. u-bend dia.(mm)

    800

    min. section(mm)

    20×3

    min. u-bend dia.(mm)

    400

    angle steel outturn



    max. section(mm)

    50×5

    min. u-bend dia.(mm)

    800

    min. section(mm)

    20×3

    min. u-bend dia.(mm)

    400

    channel steel inturn



    channel steel model

    8

    min. u-bend dia.(mm)

    600

    channel steel outturn



    channel steel model

    8

    min. u-bend dia.(mm)

    700

    flat steel bend horizontally



    max. section(mm)

    100×18

    min. u-bend dia.(mm)

    600

    flat steel bend vertically



    max. section(mm)

    50×12

    min. u-bend dia.(mm)

    500

    steel pipe



    max. section(mm)

    42×4

    min. u-bend dia.(mm)

    500

    steel rob



    max. section(mm)

    38

    min. u-bend dia.(mm)

    450

    square tube



    max. section(mm)

    45×3

    min. u-bend dia.(mm)

    750


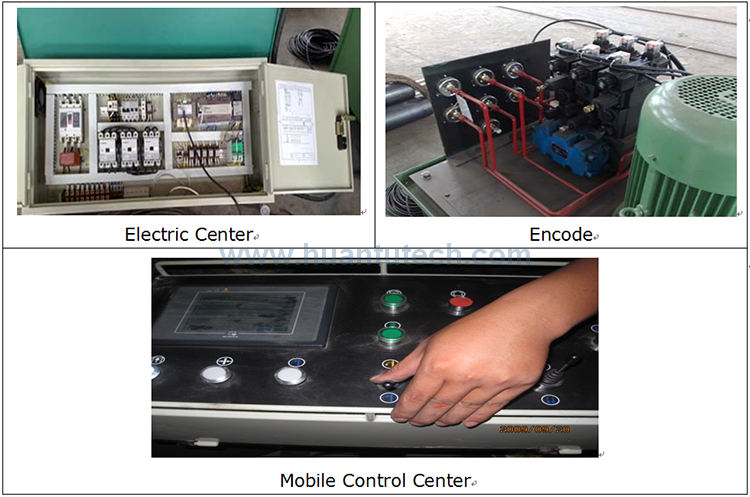

    Simple drawing











    Guarantee Installation and Training Service:
    1.Our guarantee time is 5 years from B/L date.  If any component is damaged during guarantee time,we can send the component to the customer by DHL,TNT freely.
    2.Our factory can send our engineer to the customer’s factory install,commission and training freely. The customer provide the double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
    3.Our factory provide the service for the customer forever,if the customer need operation help,can contact us by Skype,Email ,Telephone,Whatsapp and Wechat at any time,we provide 24 hours on-line service.
